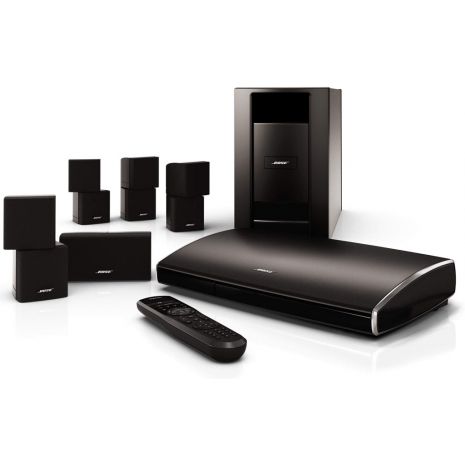

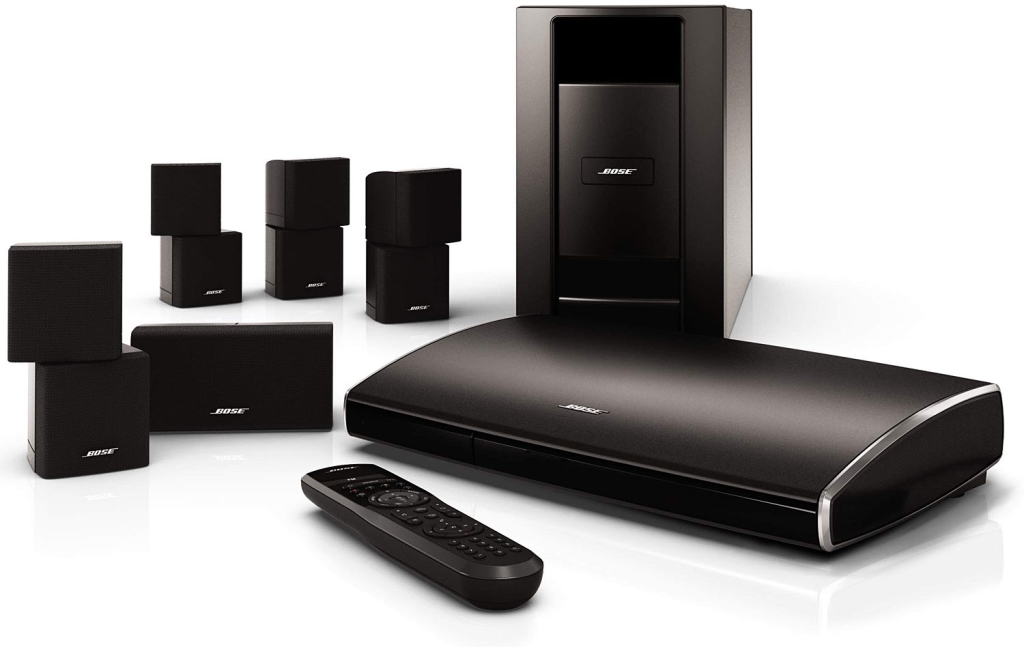

Bose Lifestyle 525 Series II

Dimensions

• Height: 3 in (7.62 cm)
• Width: 16.16 in (42.16 cm)
• Depth: 9.3 in (23.62 cm)
• Weight: 7.5 lbs (3.4 kg)

• Height: 6.25 in (15.7 cm)
• Width: 3 in (7.9 cm)
• Depth: 4 in (10.2 cm)
• Weight: 2.4 lbs (1.1 kg)

• Height: 3.13 in (7.9 cm)
• Width: 6.25 in (15.9 cm)
• Depth: 4.13 in (10.5 cm)
• Weight: 2.36 lbs (1.07 kg)

• Height: 13 in (33 cm)
• Width: 8 in (20.6 cm)
• Depth: 21.63 in (54.9 cm)
• Weight: 26.22 lbs (11.9 kg)

• Height: 9.4 in (23.8 cm)
• Width: 2.2 in (5.6 cm)
• Depth: 1.1 in (2.8 cm)
• Weight: .42 lbs (.19 kg)

Inputs/outputs

Console rear panel

 Console front panel

• 1 HDMI input
• 1 analog input
• 1 analog A/V input
• 1 headphone jack

Additional details

• Power supply: Dual voltage 100 - 240

Total shipping weight

• 71 lbs (32.2 kg)

• Control console
• Acoustimass module
• 4 Direct/Reflecting speakers
• Horizontal center channel speaker
• Universal RF remote control with 4 AA batteries
• Front speaker cables (20')
• Rear speaker cables (50')
• Acoustimass module power cord (8')
• HDMI® cable (6')
• Power supply (5')
• AC Power cord
• Audio input cable
• IR emitter cable
• Stereo audio cable
• AM Antenna
• FM Antenna
• USB flash drive (for system updating only)
