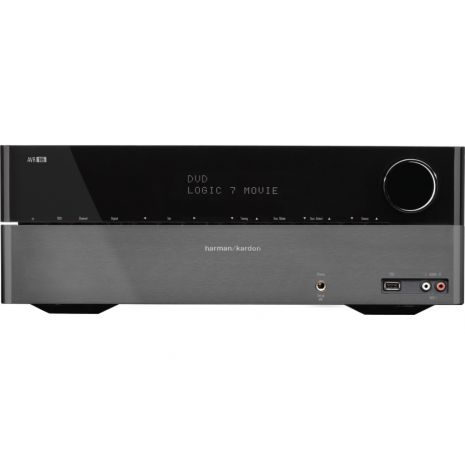

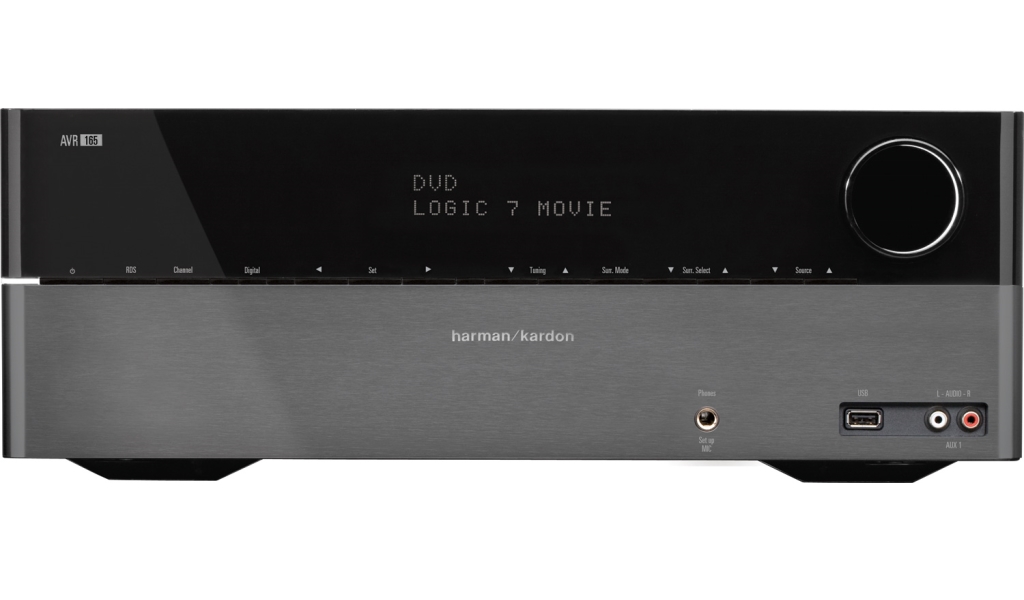

Harman-Kardon AV Receiver AVR 165

Power/Technology

■ Powers a 5.1-channel surround-sound system

■ 95 watts of power per channel

■ High instantaneous-current capability (HCC), ultrawidebandwidth

amplifier design for accurate, dynamic sound and

emotional impact

■ HDMI v.1.4a with 3-D and Deep Colour for 3-D content

such as movies, TV and sporting events

■ HDMI Audio Return Channel sends TV sound back to the

AVR, making for better quality, fewer connections and a

system that’s easier to use

■ Dolby TrueHD and DTS-HD Master Audio decoding for highresolution

sound that matches high-resolution video

■ Logic 7 processing turns conventional stereo sources into

5.1-channel surround sound

■ FM/AM tuner with 30 station presets and Radio Data System

(RDS) to display radio text information

■ EzSet/EQ capability automatically adjusts individual speaker

volume levels, delay and equalisation

■ Surround-sound decoding for all popular Dolby and DTS

soundtracks

■ Lip-sync adjustment delays the audio signal to match the

video signal

■ Screen-saver function prevents image burn-in on CRT and

plasma displays

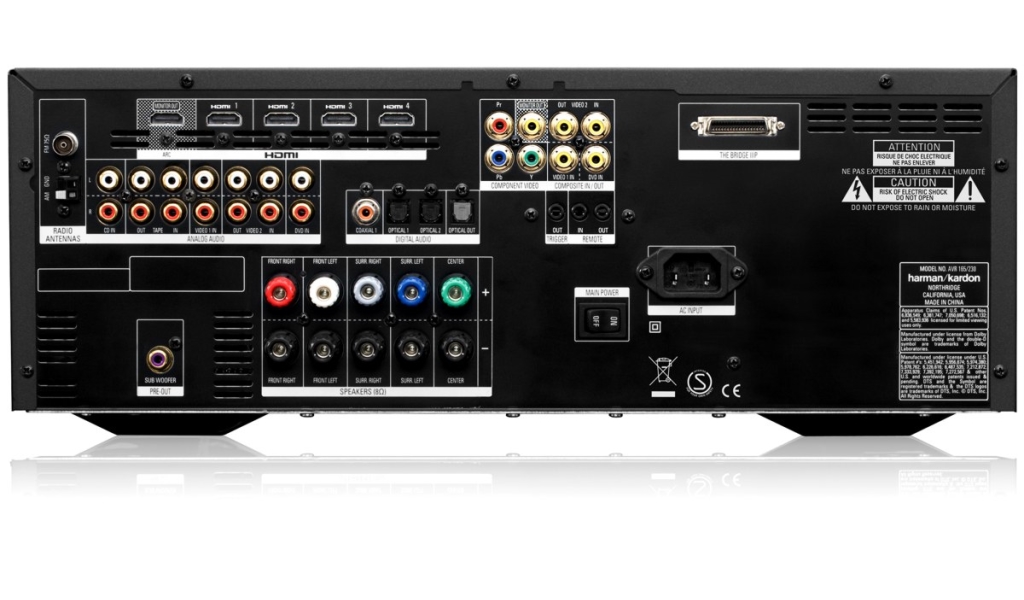

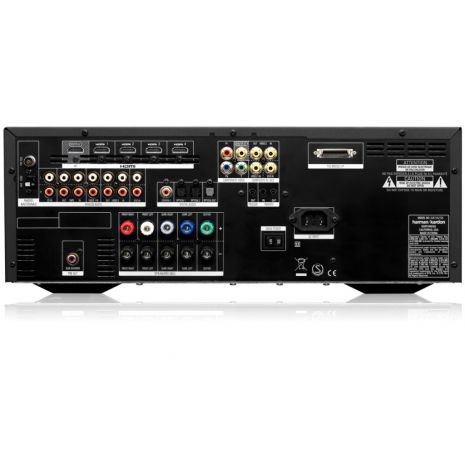

Connectivity

■ Works with The Bridge IIIP (optional) to play entertainment from

your iPod or iPhone device on your home entertainment system

■ Four HDMI inputs provide extensive connectivity

■ One component and three composite video inputs

■ Three digital audio inputs and six analogue audio inputs

■ Front-panel analogue audio input makes it easy to connect to

portable sources

■ Subwoofer pre-out allows for connection to a powered subwoofer

■ Colour-coded binding-post speaker connectors for secure

connections

■ Headphone jack with HARMAN headphone surround mode for

stereo headphones

■ Subwoofer trigger output for compatible subwoofer

■ Upgradeable firmware via USB port

■ Detachable IEC power cord

Ease of Use

■ On-screen display (OSD) makes setting up the receiver easy

■ Multidevice, programmable remote controls your entire

audio/video system

■ Two-line dot-matrix information display lets you listen to music

without turning on the TV

■ 30 FM/AM radio station presets make it easy to find your

favourite station

Audio Section

■ Stereo mode, continuous average power: 95 watts/channel,

both channels driven @ 8 ohms, 20Hz – 20kHz, <0.07% THD

■ Multichannel power: 5 x 95 watts/channel, two channels

driven @ 8 ohms, 20Hz – 20kHz, <0.07% THD

■ Bandwidth @ 1W (+0dB/3dB): 10Hz – 130kHz

■ Signal-to-noise ratio (IHF-A): 100dB

■ High instantaneous-current capability (HCC): ±25 amps

FM Tuner Section

■ Frequency range: 87.5MHz – 108.0Mhz

■ Usable sensitivity (IHF): 1.3μV/13.2dBf

■ Signal-to-noise ratio (mono/stereo): 70dB/68dB

■ Distortion (mono/stereo): 0.2%/0.3%

■ Stereo separation: 40dB @ 1kHz

■ Selectivity (±400kHz): 70dB

AM Tuner Section

■ Frequency range: 522kHz – 1620kHz

■ Signal-to-noise ratio: 45dB

■ Usable sensitivity (loop): 500μV

■ Distortion (1kHz): 50%, mod 0.8%

Video Section

■ Television format: PAL

■ HDMI v.1.4a with 3-D, Deep Colour and Audio Return Channel

General

■ Power requirement: AC 230V/50Hz – 60Hz

■ Power consumption: 540W maximum / 280W rated

■ Dimensions: (H x W x D): 165mm x 440mm x 385mm

■ Weight: 9.1kg
