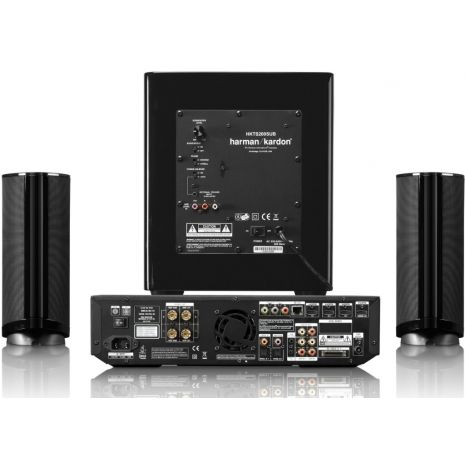

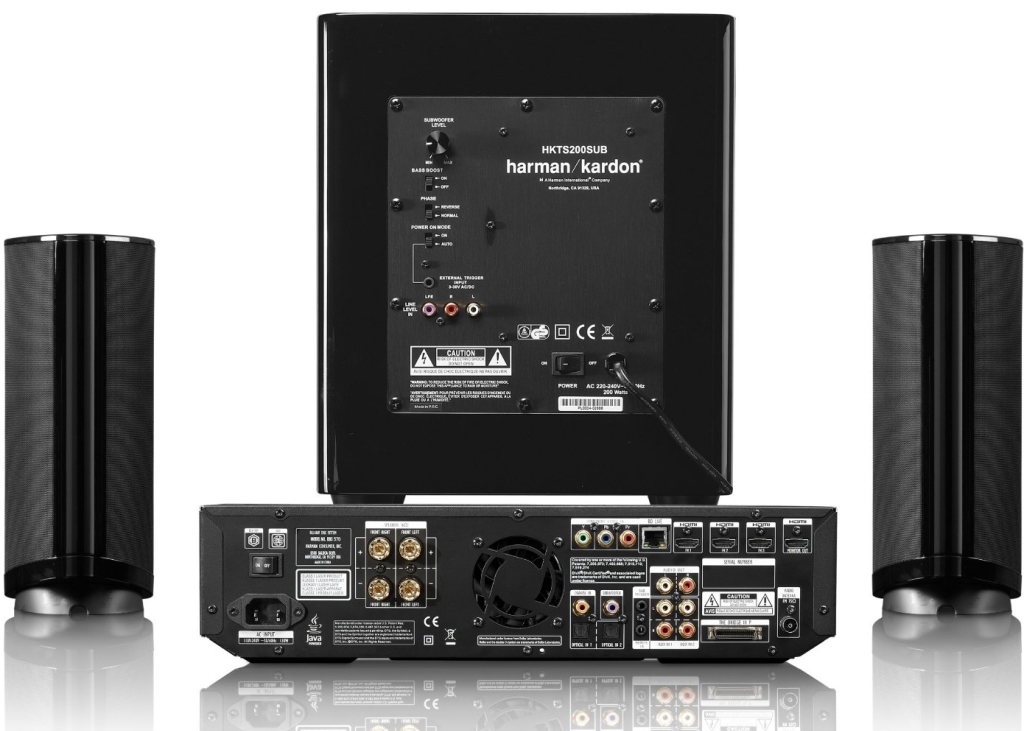

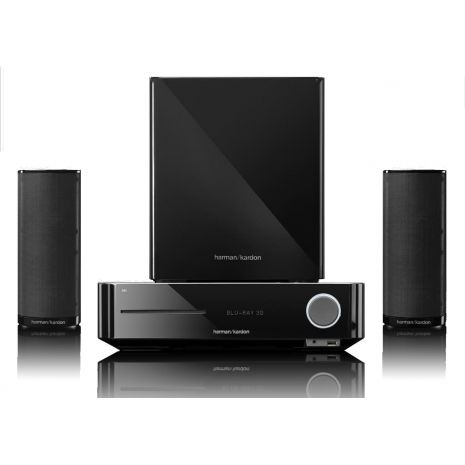

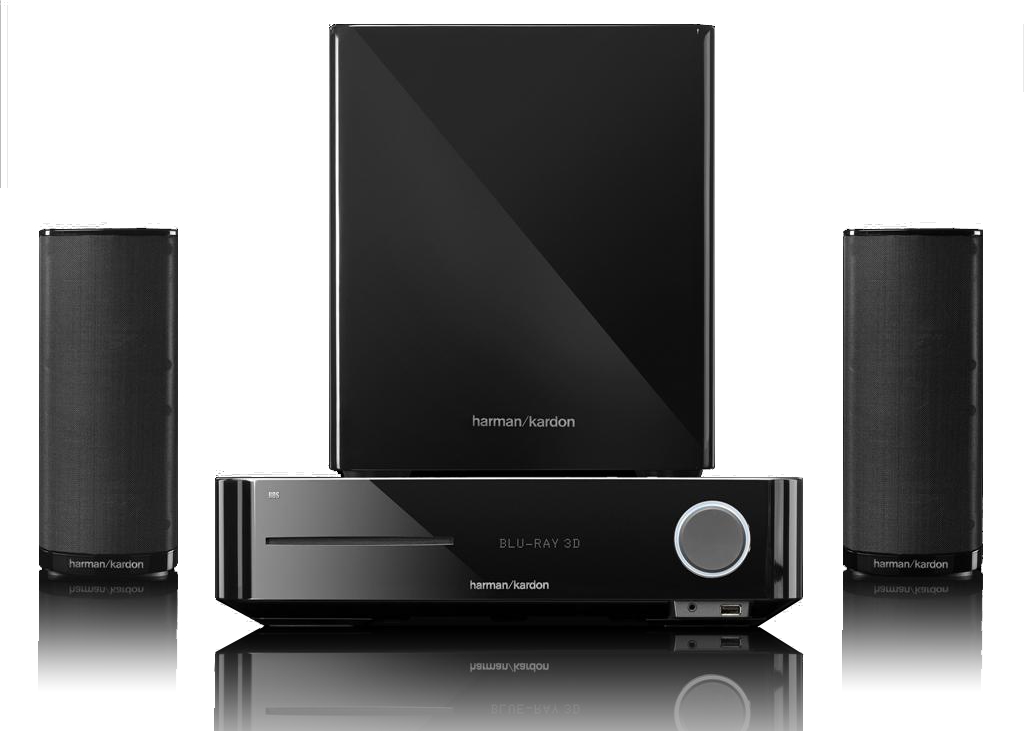

Harman-Kardon Sistem 2.1 BDS 370

Key Features

■ HDMI® v.1.4a with 3-D and Audio Return Channel: Delivers digital

video and audio at the highest quality level (up to 1080p)

■ Dolby® Virtual Speaker technology: Creates a realistic 5.1-channel

surround-sound sensation from two speakers and a subwoofer

■ Digital amplifier technology: Delivers high power from a small

package that uses less energy and generates less heat

■ Two dual-midrange two-way satellite speakers: Maintain consistent

sound from speaker to speaker, making moving sounds clearer and

more realistic, even at higher volumes

■ Compact powered subwoofer: Downward-firing to extend and

enhance the bass response

■ Extensive connectivity: Three HDMI v.1.4a inputs, three digital

audio inputs and two analogue inputs make it easy to connect

other audio/video components to your BDS system; there’s even a

component video connection ideal for game consoles

■ The Bridge IIIP-compatible with iPod/iPhone: System connects to iPod and iPhone via Harman Kardon The Bridge IIIP dock (not included)

■ Heavy-duty, gold-plated binding posts: Benefit from ultra-secure

speaker connections and compatibility with a variety of speaker wire

■ BD-Live™ connection: Connect to your home network, and

experience next-generation interactive content through BD-Live™

technology

■ DivX Certified® to play DivX® video up to HD 1080p, including

premium content

■ Playlist function: Automatically recalls your favourite files stored on

USB or CD-R discs, with minimal button pushing

■ Dot-matrix information display: Delivers status messages and

allows you to listen to music on the BDS system – without having to

turn on the TV

■ Cover-art display function: See album cover and artist info while

playing audio files with ID3 tags played from USB devices

■ Subwoofer trigger: When user turns system on or off, the subwoofer automatically turns on or off

■ Screen-saver function: Prevents image burn-in on CRT and plasma displays

■ Detachable IEC power cord: Simplify installation by running the

power cord to the installation site before installing the unit

■ Upgradable firmware: Get system upgrades via the on-screen

display to keep your receiver up to date

■ Headphone jack: Enables private listening when you connect stereo

headphones directly to the BDS system

■ Speaker wall-mount hardware and all cables included

Audio Section

■ Continuous average power, stereo mode: 65 watts per channel, 20Hz – 20kHz, @ <0.1% THD, both channels driven into 6 ohms

■ Input sensitivity/impedance (line inputs): 250mV/46k ohms

■ Signal-to-noise ratio (IHF-A): –90dB

■ Frequency response @ 1W (±0.5dB): 20Hz – 20kHz

FM Tuner Section

■ Frequency range: 87.5MHz – 108.0MHz

■ Usable sensitivity IHF: >14dBf

■ Signal-to-noise ratio (mono/stereo): –60dB/–55dB

Disc Player Section

■ Supported disc formats: 127mm (5-inch) or 76mm (3-inch) BD-Video (single-layer or double-layer), DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW discs

■ Region code (BD/DVD): B/2 (EU)

■ Audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS® Digital, DTS-HD™ High Resolution Audio, DTS-HD Master Audio,™ PCM, WMA (DRM-free version only): WMA9, CBR @192kbps,

VBR @ 355kbps, MP3: 32kbps – 320kbps bitrates, including

variable-bitrate encoding

■ Still-image format: JPEG

■ Video signal system: PAL (EU)

■ Frequency response: 20Hz – 20kHz ±0.5dB

■ Signal-to-noise ratio: –90dB (A-weighted)

■ Dynamic range: 90dB (16-bit)

■ THD/1kHz: DVD/CD: 0.1%

■ Wow & flutter: Below measurable limits

Video Section

■ Television format: NTSC or PAL (selectable)

■ HDMI version: v.1.4a, with 3-D and 30/36-bit Deep Colour

General

■ Power requirement: 110 – 240V AC, 50/60Hz

■ Power consumption: 110W maximum; <1W standby

■ Dimensions (H x W x D): 102mm x 401mm x 260mm

■ Weight: 6.4kg

Speaker System

■ Frequency response: 45Hz – 20kHz (-6dB)

SAT-TS11 Satellites

■ Midrange transducer: 75mm (3") cone, video-shielded

■ High-frequency transducer: 13mm (½") dome, video-shielded

■ Nominal impedance: 8 ohms

■ Recommended power: 10-120 watts

■ Sensitivity (2.83V/1m): 86dB @ 1 watt/1 meter

■ Dimensions (H x W x D): 243mm x 100mm x 92mm

■ Weight: 1.0kg

■ Finish: Gloss black

HKTS 210SUB Powered Subwoofer

■ Low-frequency transducer: 200mm (8") cone

■ Amplifier power: 200 watts RMS

■ Enclosure type: Sealed

■ Power requirement: 220V – 240V AC, 50Hz/60Hz (EU)

■ Dimensions (H x W x D): 353mm x 267mm x 267mm; height measurement includes feet

■ Weight: 9kg

■ Finish: Gloss black
