Harman-Kardon Sistem 5.1 BDS 680

A home entertainment system exceeding allexpectations in sound, picture and connectivity with a beautiful design you’llwant to showcase

Meet the 5.1-channel, 3D Blu-ray Disc™ System that addresses your fully connected lifestyle.

The Harman Kardon® BDS 680 is a sleek, high-performance, 3D Blu-ray Disc™ System redefining Blu-ray capability. It features three HDMI® inputs with 3D; HDMI Audio Return Channel (ARC) for compatible TVs; Wi-Fi® networking connectivity, eliminating the need for a wired Ethernet connection; Apple AirPlay for streaming content from your iPad, iPhone, iPod, or iTunes on your Mac or PC; Bluetooth®® MultiConnect™ technology for pairing two devices at once; NFC for easy Bluetooth® pairing and DLNA® 1.5.

With the BDS 680, you can also connect to Pandora®, Picasa, AccuWeather™ and other online services (where available). Harman Kardon’s legendary best-in-class sound technology brings Dolby TrueHD and DTS-HD to life. With Dolby Volume, you can hear everything as was originally intended without disturbing the neighbors. Optimize your listening experience with its EzSet/EQ™ speaker calibration system. Setting up and using the system is easy and fun with its clean and attractive, high definition graphical interface or with the free-of-charge remote app for iOS and Android.

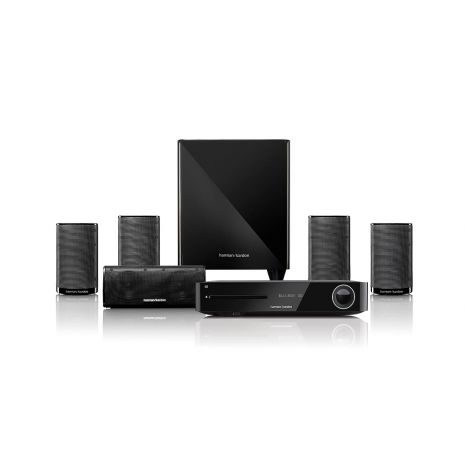

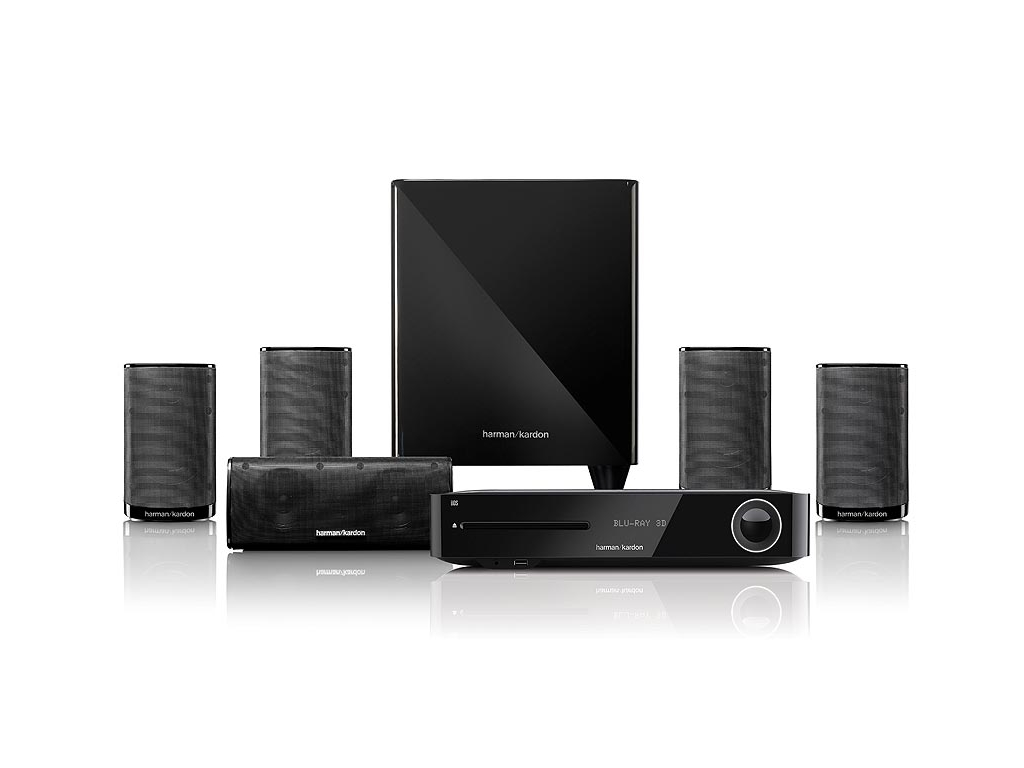

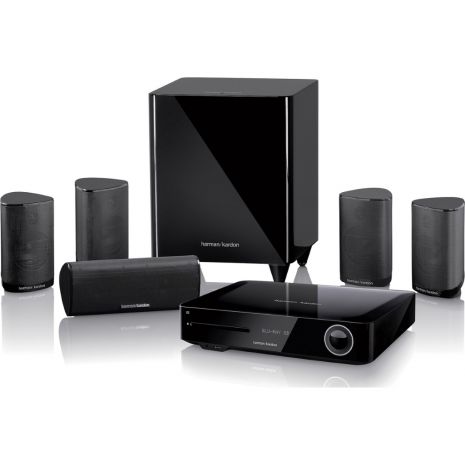

Four powerful, voice-matched satellites, a center-channel loudspeaker with dual video-shielded midrange drivers and a companion 200-watt powered subwoofer deliver an enveloping, 360-degree soundscape. In other words, the BDS 680 raises the standards of what you’ve come to expect from any Blu-ray system.

What’s in the box:

• 1 Harman Kardon BDS 580 system
• 1 Harman Kardon HKTS 9 loudspeaker system
• 1 Programmable remote control
• 1 EzSet/EQ™ III microphone with 22’ (6.7m) cable
• 2 AAA batteries
• 1 FM radio antenna
• 2 Wireless network antennas
• 1 6’ (1.8m) region-specific IEC power cord
• 1 3’ (0.9m) HDMIR cable

Specifications

Audio section

• Continuous average power, stereo mode: 65 Watts per channel, 20Hz – 20kHz, @ <1% THD, both channels driven into 6 ohms
• Input sensitivity/impedance (line inputs): 250mV/> 10kΩ
• Signal-to-noise ratio (IHF-A): –90dB
• Frequency response @ 1W: 20Hz – 20kHz, }0.5dB
• Slew rate: 40V/ųsec

FM tuner section

• Frequency range: 87.5MHz – 108.0MHz (US and EU)
• Usable sensitivity IHF: >14dBf
• Signal-to-noise ratio (mono/stereo): 55dB/55dB
• Distortion (mono/stereo): 0.3%/0.5%
• Stereo separation: –40dB @ 1kHz
• Image rejection: 70dB
• IF rejection: 80dB

Disc receiver section

• Supported disc formats: 5-inch (12cm) or 3-inch (8cm)
• BD-Video (single-layer or double-layer), DVD-Video
• DVD+R/+RW, DVD-R/-RW, CDDA (CD audio), CD-R/RW discs

Audio formats:

• DolbyR Digital, DolbyR Digital Plus, DolbyR TrueHDR, DTS DigitalR, PCM, WMA (DRM-free version only): WMA9, CBR @192kbps, VBR @355kbps
• MP3: 32kbps – 320kbps bitrates, including variablebitrate encoding
• Still-image format: JPEG

Video signal receiver:

• NTSC (USA) or PAL (EU)
• Frequency response: 20Hz – 20kHz }0.5dB
• Signal-to-noise ratio: 90dB (A-weighted)
• Dynamic range: 90dB (16-bit)
• THD/1kHz: DVD/CD: 0.1%
• Wow & flutter: Below measurable limits

Video section

• Television format: NTSC or PAL (selectable)
• HDMIR version: With 3-D and 30/36-bit Deep Color

General

• Power requirement: 100 – 240V AC, 50/60Hz
• Power consumption: 110 maximum; <1W standby
• Dimensions: 400.2mm (L) x 283.8mm (W) x 78.5mm (H)
• Weight: 3.72kg
• Subwoofer dimensions: 267mm (L) x 267mm (W) x 353mm (H); height measurement includes pedestals
• Subwoofer weight: 9kg
• Satellite dimensions: 92mm (L) x 100mm (W) x 167mm (H)
• Satellite weight: 0.6kg
• Center dimensions: 92mm (L) x 241mm (W) x 102mm (H)
• Center weight: 1kg
