A home entertainment system exceeding allexpectations in sound, picture and connectivity with a beautiful design you’llwant to showcase
Meet the 5.1-channel, 3D Blu-ray Disc™ System that addresses your fully connected lifestyle.
The Harman Kardon® BDS 780 is a sleek, high-performance, 3D Blu-ray Disc™ System redefining Blu-ray capability. It features three HDMI® inputs with 3D; HDMI Audio Return Channel (ARC) for compatible TVs; Wi-Fi® networking connectivity, eliminating the need for a wired Ethernet connection; Apple AirPlay for streaming content from your iPad, iPhone, iPod, or iTunes on your Mac or PC; Bluetooth®® MultiConnect™ technology for pairing two devices at once; NFC for easy Bluetooth® pairing and DLNA® 1.5.
With the BDS 780, you can also connect to Pandora®, Picasa, AccuWeather™ and other online services (where available). Harman Kardon’s legendary best-in-class sound technology brings Dolby TrueHD and DTS-HD to life. With Dolby Volume, you can hear everything as was originally intended without disturbing the neighbors. Optimize your listening experience with its EzSet/EQ™ speaker calibration system. Setting up and using the system is easy and fun with its clean and attractive, high definition graphical interface or with the free-of-charge remote app for iOS and Android.

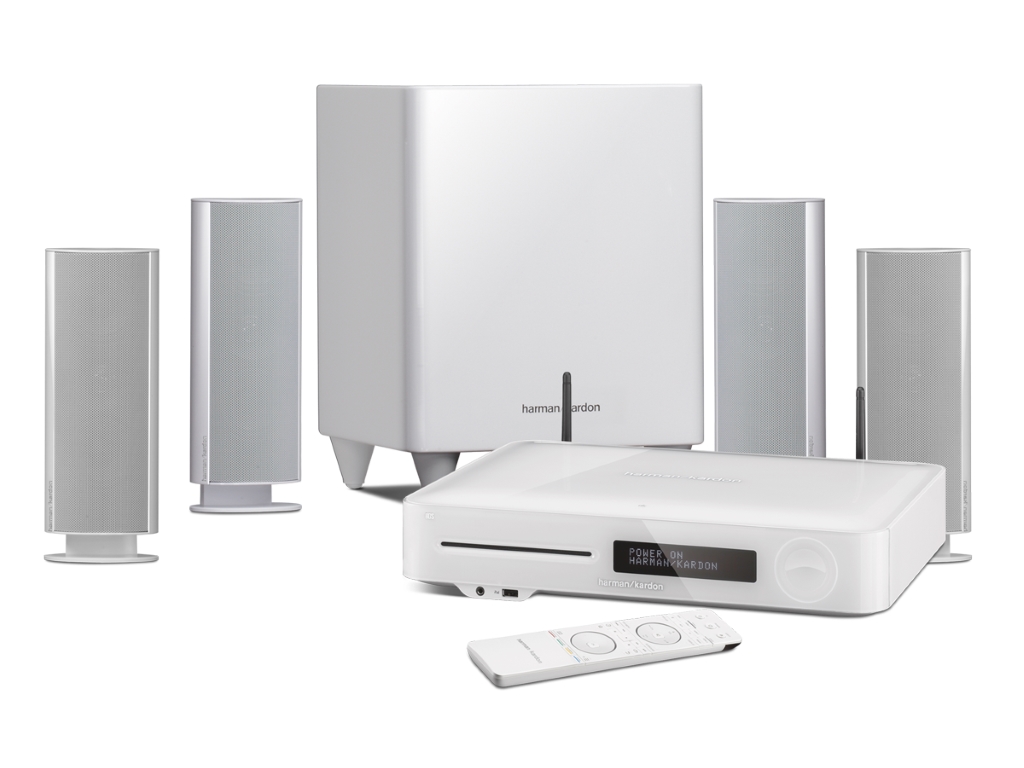

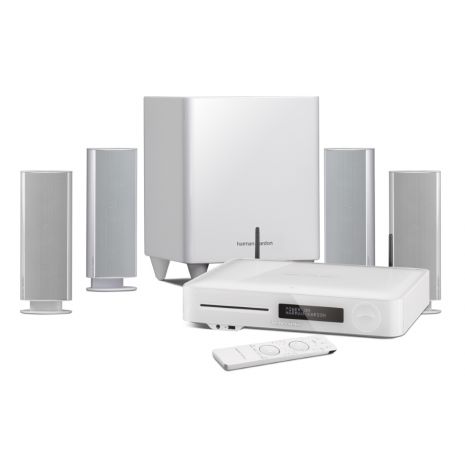

Four powerful, voice-matched satellites, a center-channel loudspeaker with dual video-shielded midrange drivers and a companion 200-watt powered subwoofer deliver an enveloping, 360-degree soundscape. In other words, the BDS 780 raises the standards of what you’ve come to expect from any Blu-ray system.
AUDIO SECTION | |
Continuous average power, stereo model | 65 watts per channel, 20Hz – 20kHz, @ <1.0% THD, both channels driven into 6 ohms |
Frequency response @ 1W (±0.5dB) | 20Hz – 20kHz |
FM TUNER SECTION | |
Frequency Range | 87.5MHz – 108.0MHz (US and EU) KHz |
Usable Sensitivity (IHF) | >14dBf |
Distortion (Mono/Stereo) | 0.3%/0.5% |
DISC PLAYER SECTION | |
Supported Disc Formats | 5-inch (12cm) or 3-inch (8cm) BD-Video (single-layer or double-layer), DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW discs |
Audio Formats | Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital, PCM, MP3: 32kbps – 320kbps bitrates, including variable-bitrate encoding |
Still-Image Formats | JPEG |
Video signal system | NTSC (USA) or PAL (EU) |
Frequency Response | 20Hz – 20kHz, ±0.5dB |
Signal-to-Noise Ratio | –90dB (A-weighted) |
Dynamic range | 90dB (16-bit) |
THD @ 1kHz (DVD/CD) | 0.1% |
Wow & Flutter | Below measurable limits |
VIDEO SECTION | |
Television Format | NTSC or PAL (selectable) |
HDMI Version | with 3D and 30/36-bit Deep Color |
SUBWOOFER FEATURES | |
Dimensions (H x W x D – Metric, English) | 267mm (L) x 267mm (W) x 353mm (H); height measurement includes pedestals |
Weight (Metric, English) | 9kg |
GENERAL SPECIFICATIONS | |
Power Requirement | 100 – 240 V AC, 50/60 Hz |
Power Consumption (standby) | 110 maximum |
Dimensions (Source Unit – H x W x D – Metric/English) | 400.2 mm (L) x 283.8 mm (W) x 78.5 mm (H) |
