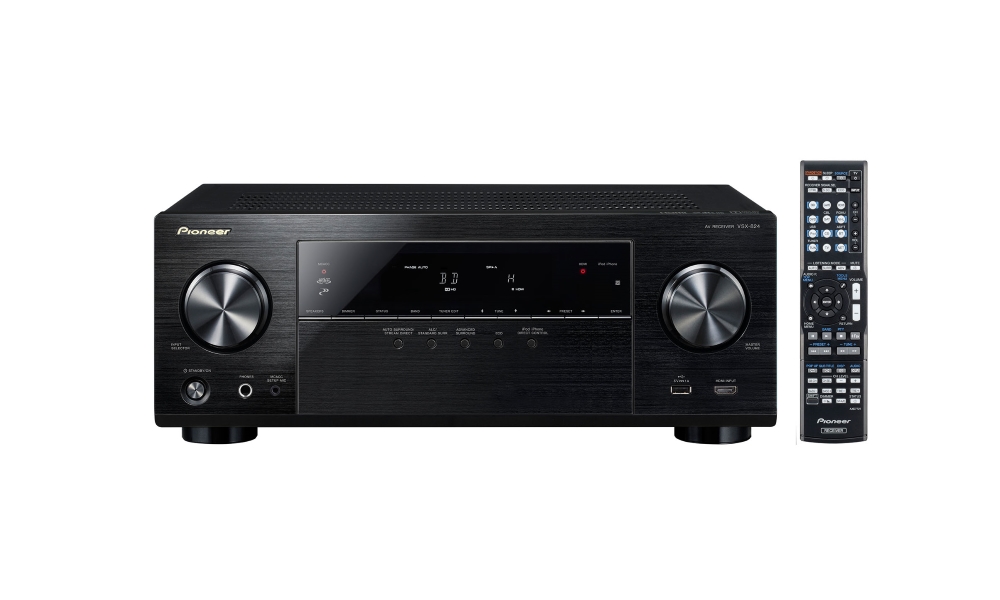

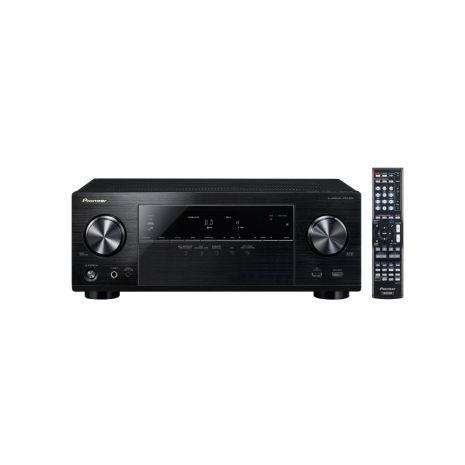

Pioneer AV Receiver VSX-824-K

Direct Energy amplifier

Output Power per Channel130W

Impedance at Output Level6Ω

Number of Channels5

Signal / Noise Ratio98 dB

Input ConnectionsFront:
• 1 x HDMI
• 1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive)
• 1 x MCACC Setup MIC

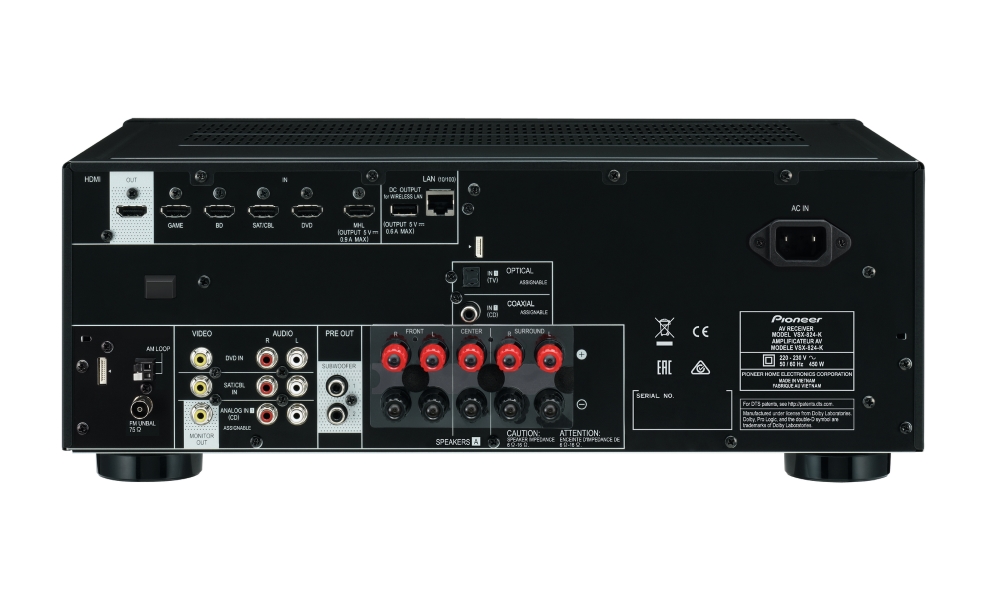

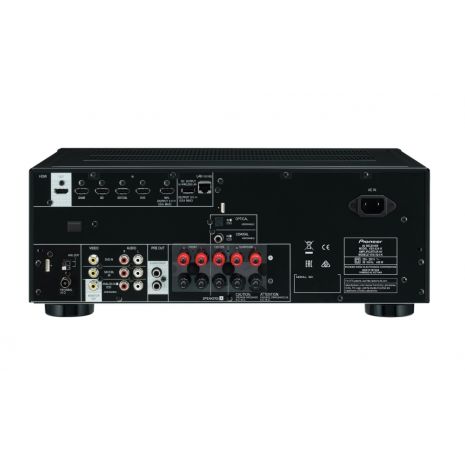

Rear:
• 5 x HDMI (1 for HDMI/MHL)
• 1 x Ethernet
• 2 x AV Composite
• 1 x Audio (Assignable)
• 1 x Digital Coaxial (Assignable)
• 1 x Digital Optical (Assignable)
• 1 x USB charge port for AS-WL300 Wireless LAN Converter

Output ConnectionsFront:
• 1 x Phones out

Rear:
• 1 x HDMI
• 1 x Monitor Composite
• 2 x Preout Subwoofer
• 5 x Speaker out

File Playback• AM/FM Tuner (30 presets)
• Internet Radio with vTuner
• Spotify Ready
• Apple AirPlay

Via LAN/USB:
• MP3, WAV, AAC, WMA, FLAC, AIFF, and Apple Lossless
• iPod Digital Transmission

192 kHz/24-bit audio playback:
WAV, FLAC, and AIFF

Gapless playback:
• MP3, WAV, AAC, FLAC, AIFF, and Apple Lossless

Via HDMI:
• SACD

MHL Terminal for Android Smartphones

HD Audio Formats• Dolby TrueHD
• DTS-HD High Resolution Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI)Graphic User Interface with Album Artwork (HDMI only)

7 languages :
• Dutch
• English
• French
• German
• Italian
• Russian
• Spanish

Sleep Timer

Firmware updates (via USB)

Bluetooth (Built-in, with aptX support)

Internet Radio (vTuner)

Spotify Connect (+)

DLNA Certified (+) (v1.5)

HTC Connect (+)

Windows 8.1 Compatible

Remote ControlGlow-key, SR remote control

Eco Mode

Composite Video Input/Output2/-

Digital Optical Input/Output1/- (assignable)

Digital Coaxial Input/Output1/- (assignable)

Ethernet (+)

HDMI Front Input

HDMI Input/Output6 (rear) /1

Headphone

Large speaker terminals

Pre-amp Output (SW)

USB Host (Front) (+)

iControlAV5 (+)

Works with iPod

Works with iPhone

AirPlay

Compatible GenerationsVia USB:
• iPhone 5/5S/5C
• iPhone 4/4S
• iPhone 3G/3GS
• iPhone
• iPod touch 5G/4G/3G/2G/1G
• iPod nano 7G/6G/5G/4G/3G

Supported Functions• Audio playback
• On-screen album art
• Battery charging

Wireless LAN (optional AS-WL300 adapter required)

Network Standby

Dolby TrueHD (+)

DTS-HD High Resolution Audio (+)

Surround Modes (+)11+1 (Action, Drama, Advanced Game, Sports, Classical, Rock/Pop, Extended Stereo, Front Stage Surround, Sound Retriever AIR, ECO MODE 1, ECO MODE 2 + Phones Surround)

AM/FM Tuner with RDS

Tuner Pre-set Stations30

Auto Level Control (+) (2 channel)

Auto Surround

Bass/Treble Tone Controls

Dynamic Range Control

Headphone Surround

Front Stage Surround Advance (+)

Loudness (+)

Midnight Listening Mode (+)

Phase Control (+)

Automatic Crossover Detection

MCACC (+)

Sound Delay (LipSync) (+)

Sound Retriever AIR (+)

Stream Direct (+)

Symmetric EQ (+)

Deep Colour (+)

3D Ready

x.v.Colour (+)

4K Pass Through

4K (MAIN ZONE)Up to 4K60p, 4:4:4, 24-bit

I/P Conversion

HDMI Standby Through

HDMI Standby Input Switching

Power output per channel130W

Condition1kHz, 1% THD, 6Ω

Rated Power Output• 8Ω, 2-channel: 100W per channel
• 6Ω: 130W per channel

Input (Sensitivity/Imp.): LINE etc.200 mV / 47 kΩ

Frequency Response: LINE etc.5 Hz - 100 kHz, +0/-3 dB

Signal-to-Noise Ratio: LINE etc. (DIN)98 dB

Power RequirementsAC 220-230V / 50/60Hz

Power Consumption (in use / standby)450 W / 0.1 W

Auto Power Down

AmplifierDirect Energy Amplifier

Digital Signal ProcessorTexas Instruments AureusTM (TMS320DA788)

D/A Converter192 kHz / 24-bit

A/D Converter96 kHz / 24-bit

Dimensions (W x H x D)435 x 168 x 331.5  mm

Weight8.5 kg
